Overview

The 4RS-1 is a universal 4-outlet power expansion module. It can be used with any of TrolMaster’s “plug-in” style device modules to expand the number of devices that can be controlled by the Hydro-x. A single 220-240 volt “trigger” cable on the 4RS-1 connects to your device / control module. When the device module is activated by the Hydro-x, the 4RS-1 trigger cable will turn on each of the 4 receptacles on the 4RS-1 with a 3-second time delay between each outlet being activated. That minimizes high start-up (inrush current) and allows up to 4 devices to be safely controlled. The 4RS-1 must be installed with a 220/240 volt power circuit (up to 50-amps @ 240vac). Three wire terminals inside the unit accept up to #6 AWG wire making connections to the power source easy.

* This plug is NOT U.L. or E.T.L listed.

Features

• Individual Power Relay (25A for each outlet)
• 3-second Intervals as Time Delay for Reducing Start-Up Surges

Specifications

Overview

The Trolmaster's Device Station Kit is a universal 4-outlet device module kit that can be directly connected to the Tent-X controller through RJ 12 cables. It takes up 4 device modules from the controller and comes with 4 outputs that are defaulted from left to right, including DSTx1, DSHx1, and DSPx2. The power cable is directly connected to the socket, making installation quick and easy. With a total amperage of 15A, users can power multiple devices at once, each output capable of providing up to 15A.

Features

• 3-in-1 Temperature / Humidity / Timer device control station
• Up to15A total amperage loading capacity
• Plug-n-play simply installation

Specifications

TRANSLATE with x

English

Arabic	Hebrew	Polish
Bulgarian	Hindi	Portuguese
Catalan	Hmong Daw	Romanian
Chinese Simplified	Hungarian	Russian
Chinese Traditional	Indonesian	Slovak
Czech	Italian	Slovenian
Danish	Japanese	Spanish
Dutch	Klingon	Swedish
English	Korean	Thai
Estonian	Latvian	Turkish
Finnish	Lithuanian	Ukrainian
French	Malay	Urdu
German	Maltese	Vietnamese
Greek	Norwegian	Welsh
Haitian Creole	Persian

TRANSLATE with

COPY THE URL BELOW

Back

EMBED THE SNIPPET BELOW IN YOUR SITE

Enable collaborative features and customize widget: Bing Webmaster Portal

Back

Overview

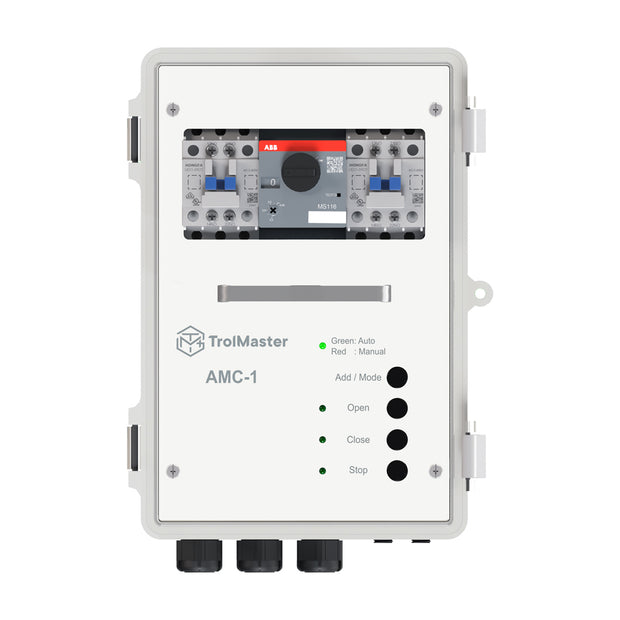

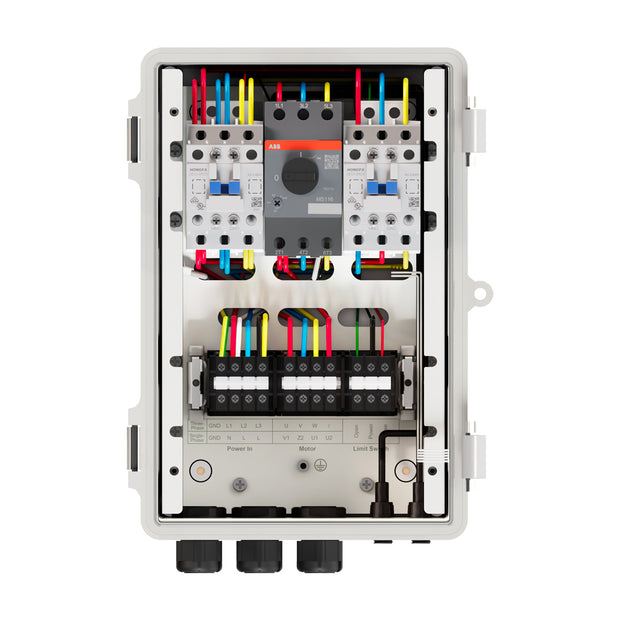

The AMC-1 is an advanced agricultural greenhouse curtain motor driver that facilitates both manual and automated control of curtain motors. Designed for seamless integration with the GCS-1 (Green-X Greenhouse System), the AMC-1 allows for precise motor control, including forward and reverse operation, stopping functions, timeout shutoff, and overcurrent protection. This integration enhances greenhouse management by enabling centralized monitoring and control, which optimizes environmental conditions for plant growth and improves operational efficiency.

Specifications

Input Voltage: [Single-Phase] 100-277V, 50/60Hz [Three-Phase] 207-480V, 50/60Hz
Maximum Output Current: 4A
Communication Method: RS-485 (4-pin waterproof connector)
Waterproof Rating: IP54
Ambient Temperature: 32-104°F (0-40°C)
Relative Humidity: ≤90%

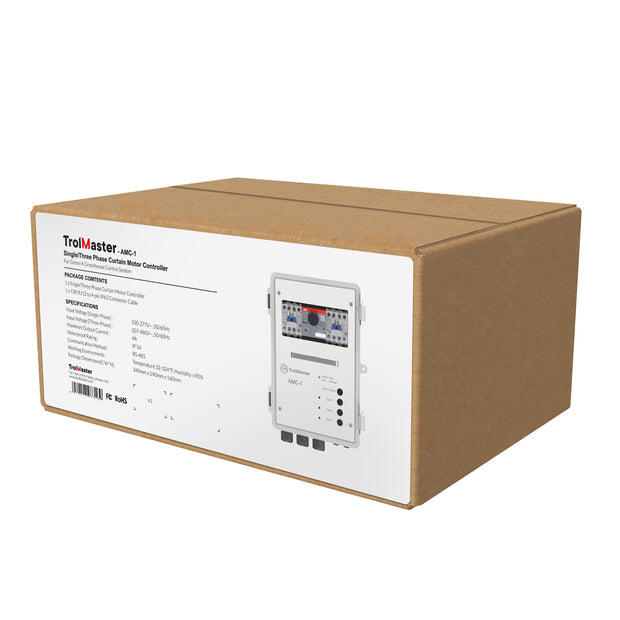

Package Content

1x Single/Three Phase Curtain Motor Controller (100-277V)
1x 12ft RJ12 to 4-pin IP65 Connector Cable

Overview

TrolMaster's AMP-2 module connects the Aqua-x to a set of precision pH / EC & temperature probes to constantly measure the pH / EC & temperature of the water being sampled. The AMP-2 works with the TrolMaster PCT-1&2 and the PPH-1&2 probes. Once connected to the Aqua-x, the AMP-2 will display the sensor data on the Aqua-x and on the APP. The minimum and maximum “limits” can be set on the Aqua-x providing 24/7 notification of pH / EC or temperatures that are out of limits.

Features

• Simple-to-Use DIN Type Bracket for Easy Installation
• BNC Terminal (left) allows Direct Connection to pH Sensor
• Mini-DIN Terminal (right) allows Direct Connection to EC/Temp Sensor
• Mini-DIN Terminal (middle) allows Direct Connection to Aqua-X Controller

Specifications

Package Contents

• 1 x Sensor Board
• 1 x 2.5-Meter Long Signal Cable

Overview

TrolMaster's AMP-3 Sensor Board can be used as a bridge between the sensors (pH Sensor & EC/Temp Sensor) and the Aqua-X Pro Controller. It is specially designed for the Aqua-X Pro system for hydroponics and horticulture. It can be connected to the main controller with a standard RJ12 cable. Multiple units can be connected into one system for multiple monitoring applications. The pH level, EC level and water temperature will be displayed on its LCD screen and the Aqua-X Pro master controller screen.

Features

• LCD Display for onsite monitoring
• Rj12 connection for flexible installation
• Addressing key for multiple units application

Specifications

Package Contents

• 1 x Sensor Board
• 1 x 16ft. Rj12 Cable
• 1 x 4ft. Rj12 Cable
• 1 x T-shaped Splitter

Overview

TrolMaster's ARS-1 mini-split air conditioner controller is a unique product that solves the age-old problem of having separate day and night temperature settings on your mini-split air conditioners. The ARS-1 is a universal controller that works with most mini-split air conditioners (and some window-type AC units too), as long as the unit came with an IR / infrared remote controller. We use the remote control that came with the unit to “teach” those IR signals to the ARS-1 module. Once the ARS-1 “learns” those remote control codes, the ARS-1 will send those same signals to the indoor mini-split head unit changing the setpoint to the desired Day or Night temperature setting automatically base on the photocell sensor status.

Note: The ARS-1 is currently not compatible with the following brands of devices: Daiken, Mr. Cool, Innovair, Cooper and Hunter.

Features

•   LCD Display, Easy Operation
•   Seamless Connection with Hydro-X
•   Micro-SD for Firmware Upgrade
•   Address Assignment

Specifications

Overview

The TrolMaster ARS-2 AC Remote Station is an advanced universal controller designed for seamless integration with TrolMaster's Hydro-X, Tent-X, and Green-X Control Systems (including HCS-2, HCS-3, TCS-1, and GCS-1). It addresses the need for precise, automated climate control by allowing you to easily manage any IR (infrared) remote-controlled AC unit, particularly mini-split systems and compatible window-type AC units.

A key enhancement of the ARS-2 compared to its predecessor is its ability to learn and control temperature values for AUTO, COOL, and HEAT modes, offering more versatile climate management. You "teach" the ARS-2 the IR signals from your AC's original remote control. Once configured, the ARS-2 automatically sends the desired Day or Night temperature setpoints to your AC unit, based on the photocell and temperature sensor status and your controller settings. This enables precise automatic control tailored to daily cycles. Additionally, the ARS-2 allows you to strategically set temperature parameters for a Day or Night period to effectively turn the mini-split unit completely off during that time, providing flexible, automated environmental control without manual intervention.

Features

• Seamless Connectivity with TrolMaster Control Systems
• Universal Remote Control for Mini-Split AC Systems and compatible window-type AC units
• Ability to Learn and Control Temperature Values for AUTO, COOL, and HEAT Modes
• No Extra Power Needed (powered via RJ12 cable)
• Micro-SD Slot for Firmware Updates to add features and fix bugs
• Back panel mounting for installation

Specifications

Overview

TrolMaster's AS-1 CO2 Alarm Station is an audio/visual alarm to be mounted inside or outside the room to be monitored, and sound an alarm (both visible and audible) in the event of the CO2 level going above normal or safe levels. It can be linked to either low or high-level CO2 sensors, or it can be linked to both sensors for complete redundancy.

Features

• Plug and Play
• Dry Contact output

Specifications

Package Contents

• 1 x DSD-1
• 1x Alarm
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Overview

TrolMaster's AS-2 CO2 Alarm Station combines an audio-visual alarm module with a color-coded LED display indicator and a LCD digital ppm level reading. It is designed to be mounted outside of the space to be monitored and will display the CO2 ppm level. The AS-2 can be linked to either the low or the high-level CO2 sensors, or it can be linked to both sensors for complete redundancy.

The green LED indicator shows the CO2 level is below 800ppm which means the room is safe to entry. The yellow LED indicator shows CO2 level equal to or above 800ppm which means supplemental CO2 is in use. The AS-2 will sound an audible alarm and blinking red LED indicator in the event of the CO2 level going above normal or safe levels.

Please Note: The AS-2 requires the SPH-1 for supplemental power.

Features

• Color-coded LED display indicator
• LED digital reading
• Plug & go

Specifications

Package Contents

• 1x Alarm Station 2
• 1x 16ft RJ12 Cable

Overview

The AS-5 is an audio/visual alarm module that is specially designed for HCS-2, HCS-3, and NFS-2 controllers to provide a local alarm. When an alarm condition is detected by the controllers, the AS-5 will be activated to alert the users of the new alarm condition. It can be mounted inside or outside the room for monitoring.

Features

• Plug and Play

Specifications

Package Contents

• 1x Alarm Station 5

Overview

TrolMaster's Beta-1 Digital Day/Night Remote Controller is a simple solution for Mini Split Air Conditioners.

It uses the remote control that came with your mini split air-conditioner to “learn” how to change the setpoints on the mini-split. Just about any brand of mini-split unit can be controlled by the Beta-1. Once the Beta-1 learns the signals from your remote controller, it will automatically change the setpoint on the mini-split to two separate Day and Night temperatures. It does this AUTOMATICALLY by using a small IR (infrared) emitter / sending unit that will send the same signal to the mini-split, as the remote control would normally send.

The remote controller’s teach & learn process takes about 5 minutes. Once remote control programming is complete, the user simply selects the day and night temperature settings they want to use on the Beta-1 control panel. A built-in photocell / light sensor will determine when it is Day and Night. The Beta-1 will then activate (send a signal to the mini-split unit) to go to the correct temperature setpoint based on the photocell status.

The Beta-1 unit can be mounted anywhere inside the area to be controlled as long as the unit is positioned to that the photocell on the front of the Beta-1 receives enough light to detect when it is Daytime. The IR emitter is then mounted in a position so that it has a direct line of sight to the mini-split indoor air-handler unit in order to send the IR signal to the mini-split unit.

The Beta-1’s temperature sensor provides a clear temperature reading of the current temperature inside the area being controlled, as well as the current temp setting selected. The temperature sensor will also constantly monitor and re-send the IR signal to the mini-split if the Beta-1 does not detect the temperature changing.

The Beta-1 can be set to cool only, heat only, or cooling AND heating depending on the mini-split unit’s capabilities. The Beta-1 is easy to use, reliable and effective at providing separate Day and Night temperature settings for your mini-split air conditioner.

Note: The BETA-1 is currently not compatible with the following brands of devices: Daiken, Mr. Cool, Innovair, Cooper and Hunter.

Specifications

Package Contents

• 1 x Beta-1 Controller
• 1 x Signal Emitter
• 1 x Power Cable

Overview

TrolMaster's BETA-2 can control variable-speed fans by using the current temperature to increase or decrease the fan speed. By increasing the fan speed, cooling is increased. Decreasing fan speed will reduce cooling capacity. Using the BETA-2 in this way provides a VERY economical and efficient way of dealing with heat within an enclosed space.

Features

• LED Display, Easy Operation
• Fan Speed Control Range 25-100%
• Built-In Photocell Detecting Day/Night Status
• Increase or Decrease Fan Speed based on Setpoint
• Temp Sensor with 16ft Cable for Close Placement to Plant Canopy

Specifications

Overview

TrolMaster's BETA-4 is capable of controlling any heating or cooling device that is 10-amps or less. Simply plug in your device to the power outlet on the bottom of the BETA-4. It uses 3-buttons a digital display and offers separate "day / night” temperature settings and features a built-in photocell.

Features

• LED Display, Easy Operation
• Built-In Photocell Detecting Day/Night Status
• Alternative Heating or Cooling Function
• Temp Sensor with 16ft Cable for Close Placement to Plant Canopy

Specifications

Overview

TrolMaster's BETA-6 features a precision humidity sensor within a 16ft remote probe assembly. Simply plug in your humidity / dehumidify device to the power outlet on the bottom of the BETA-6. The user can select separate “day / night” humidity settings and the photocell built into the BETA-6 will automatically start controlling your device. (Settings from 20-90% rH) Either humidifiers or dehumidifiers can be controlled by the BETA-6.

Features

• LED Display, Easy Operation
• Built-In Photocell Detecting Day/Night Status
• Alternative Humidifying or Dehumidifying Function
• Humidity Sensor with 16 ft Cable for Close Placement to Plant Canopy

Specifications

Overview

TrolMaster's BETA-8 CO2 controller offers a precision CO2 NDIR sensor / controller in an affordable easy-to-use package. The BETA-8 features a high-quality remote CO2 sensor (with 16ft cable) and built-in photocell to automatically activate your supplemental CO2 system to maintain CO2 PPM levels only during daylight hours. The BETA-8 also has adjustable deadband and min-max recall. It also has a ‘fuzzy-logic’ feature which will more accurately control compressed CO2 systems.The CO2 sensor can be easily re-calibrated and will continue to operate accurately for many years.

Features

• LED Display, Easy Operation
• Built-In Photocell Detecting Day/Night Status
• Alternative Humidifying or Dehumidifying Function
• CO2 Sensor with 16 ft Cable for Close Placement to Plant Canopy

Specifications

Overview

TrolMaster's BM-1 weatherproof box is designed to provide protection for the TrolMaster TS-1/2 (Thermostat Stations), HS-1 (Humidistat Station) and ARS-1 (AC Remote Station for the Hydro-X System) controllers from dripping water and low-pressure sprayed water.

Overview

TrolMaster's Carbon-X system provides critical monitoring of CO2 levels for up to 13 separate zones / rooms. The system can have both high-level (up to 30,000ppm) alerts, as well as low-level (5,000ppm) alerts. Both high and low-level limits are user-adjustable to meet local regulations for supplemental CO2 use indoors.

The Carbon-X system can also control various devices such as ventilation fans, dampers, main CO2 valves as well as send a signal to the fire department by interfacing to the fire / alarm panel in the facility. Automatic shut-off of CO2 is accomplished by wiring the facility’s main CO2 solenoid in series with one of the system control modules. The settings for each of the devices connected to the system are user-selectable for easy customization.

Each room monitored by the Carbon-X will also require an audio-visual alarm to alert the person to the level of CO2 in the area, and whether or not it is safe to occupy the area.

The TrolMaster app can be used to remotely monitor the Carbon-X as well as to receive user-alert / notifications if high CO2 levels are detected.

The CDA-1 is the brain of the system.

Features

• Multiple Zones
• Customizable
• Plug and Play
• App connectivity

Specifications

Package Contents

• 1x CO2 Alarm System (CDA-1)

• 2x 16ft RJ12 Cable

• 1x 12V Power Adapter
• 1x Power Cable

Overview

The Hawkeye (CM-1) from TrolMaster provides an economical and accurate method to monitor an enclosed space. Some users simply need to monitor the temperature, humidity, and CO2, and VPD levels without the need to actually control any devices. The CM-1 / Hawkeye is designed specifically to be used as a back-up monitoring system to ensure environmental conditions stay within acceptable limits.

The Hawkeye comes COMPLETE with everything you will need to measure temperature, humidity, CO2 and also provides an accurate VPD measurement (Vapor Pressure Deficit). The user can select the minimum and maximum allowable (limits) for temperature, humidity and CO2 levels. If those limits are exceeded, the Hawkeye will notify the user via the TrolMaster APP as well as by audible and visual alerts displayed on the LED digital display.

The Hawkeye is a stand-alone monitoring system that can be used with or without an internet connection. However, once the EM-1 is connected to the internet, it will begin to automatically record and display trends and data from the sensors on an easy-to-read graph within the TrolMaster APP. Local storage of ALL recorded data can also be recalled from the unit when a MicroSD card is inserted into the Hawkeye.

Features

• LED Display, Easy Operation
• Temperature / Humidity / CO2 (PPM) 3-in-1 sensor
• Smartphone APP Accessibility
• IoT Connectivity
• Alarm Function
• Data Logging

Specifications
